Autosteer System
AgroTOD Ultra
Stay on track. Harvest more
Key Features
Multiple Positioning Modes
Supports CORS, PPP and single RTK station mode.
High Integration
"Three components + one wire" integrated design.
Excellent Performance
± 2.5cm accuracy; dustproof, waterproof, shockproof.
Intelligent Design
Easy to use and support for remote assistance and OTA
Multiple Operation Modes
Multiple operation modes and also can be expanded.
Rich Function
The AB line can be reused and work data can be shared.
Uydu LBand Real-Time GNSS PPP Correction Service
- Full Constellation: Support Beidou, GPS, GLONASS and Galileo systems
- High precision: Horizontal Accuracy ≤ 2.5 cm, Vertical Accuracy ≤ 5 cm
- Fast convergence: Initialization time ≤ 5 min (the fastest < 50 s)
- Wide coverage: The Asia-Pacific region covered

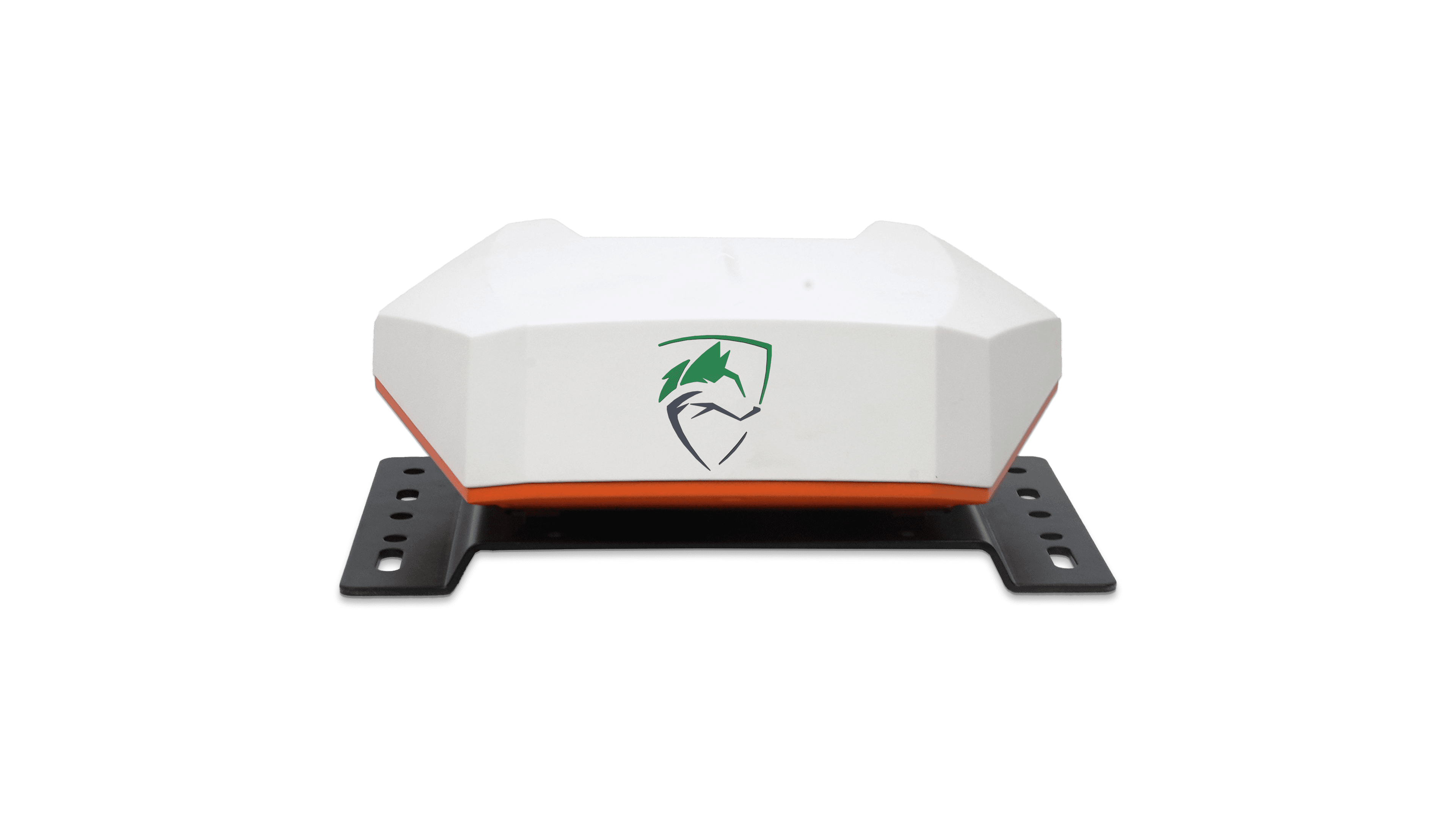

Product Components
Comparison
Features
AgroTOD Ultra Autosteer
Other Systems
Connectivity & Corrections
Works offline without internet/base using L‑Band PPP
Requires RTK base station or internet
Accuracy
±2.5 cm accuracy (field‑dependent)
2.5–10 cm depending on coverage/network
Convergence Time
≤5 min, as fast as < 50 s
10–20 min or depends on base setup
Coverage
L‑Band broadcast across Asia‑Pacific
Limited to base/CORS network coverage
Field Continuity
Keeps working in no‑cellular areas
Stops/degrades without cellular signal
Installation & Integration
"Three components + one wire" integrated, quick install
Multiple boxes and wiring, long install
Updates & Support
OTA updates, remote assistance
Limited updates, on‑site visits required
Compatibility
Works with most CANBus/hydraulic tractors
May require model/brand‑specific kits
Total Cost of Ownership
Lower TCO: No SIM/base infra
Subscriptions, data plan and base costs
Connectivity & Corrections
AgroTOD Ultra Autosteer
Works offline without internet/base using L‑Band PPP
Other Systems
Requires RTK base station or internet
Accuracy
AgroTOD Ultra Autosteer
±2.5 cm accuracy (field‑dependent)
Other Systems
2.5–10 cm depending on coverage/network
Convergence Time
AgroTOD Ultra Autosteer
≤5 min, as fast as < 50 s
Other Systems
10–20 min or depends on base setup
Coverage
AgroTOD Ultra Autosteer
L‑Band broadcast across Asia‑Pacific
Other Systems
Limited to base/CORS network coverage
Field Continuity
AgroTOD Ultra Autosteer
Keeps working in no‑cellular areas
Other Systems
Stops/degrades without cellular signal
Installation & Integration
AgroTOD Ultra Autosteer
"Three components + one wire" integrated, quick install
Other Systems
Multiple boxes and wiring, long install
Updates & Support
AgroTOD Ultra Autosteer
OTA updates, remote assistance
Other Systems
Limited updates, on‑site visits required
Compatibility
AgroTOD Ultra Autosteer
Works with most CANBus/hydraulic tractors
Other Systems
May require model/brand‑specific kits
Total Cost of Ownership
AgroTOD Ultra Autosteer
Lower TCO: No SIM/base infra
Other Systems
Subscriptions, data plan and base costs
Frequently Asked Questions
Which tractors are compatible with AgroTOD Ultra?⌄
Works with most hydraulically compatible tractors. The proper kit is determined after a site survey based on make/model and hydraulic configuration.
Which positioning/correction modes are supported?⌄
Supports Satellite L‑Band, CORS, and single RTK base station modes. The most suitable mode is chosen based on field conditions.
Does it work without internet or a base station?⌄
Yes. With Satellite L‑Band it can operate nationwide without a cellular network or a local base station.
What is the accuracy?⌄
Under proper conditions ±2.5 cm is targeted. Results vary with terrain, slope, equipment, and antenna placement.
What are convergence and startup times?⌄
RTK: <1 min; Satellite L‑Band: typically ≤5 min (fastest <50 s). System startup completes in ~3 s above 1.8 km/h.
What is the operating speed range?⌄
Supports stable operation between 0.1–15 km/h.
Can I reuse AB lines and jobs?⌄
Yes. AB lines are reusable and job data can be shared.
How are installation and integration?⌄
Three components + one cable integrated design enables fast installation. Calibration and tests are performed during setup.
Is steering torque sufficient?⌄

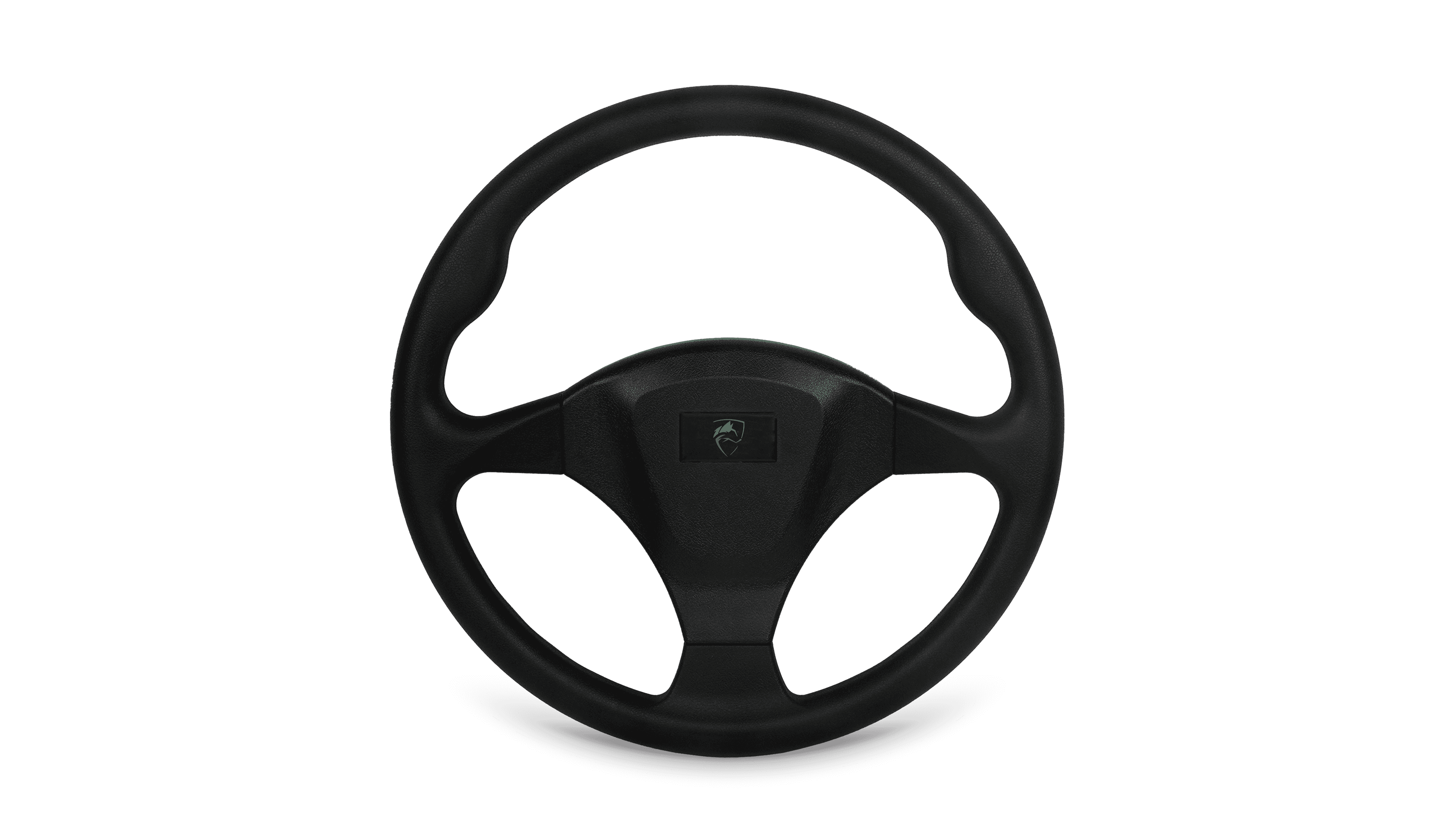

The electric steering provides 7 N·m nominal and 16 N·m max torque; sufficient for most applications.

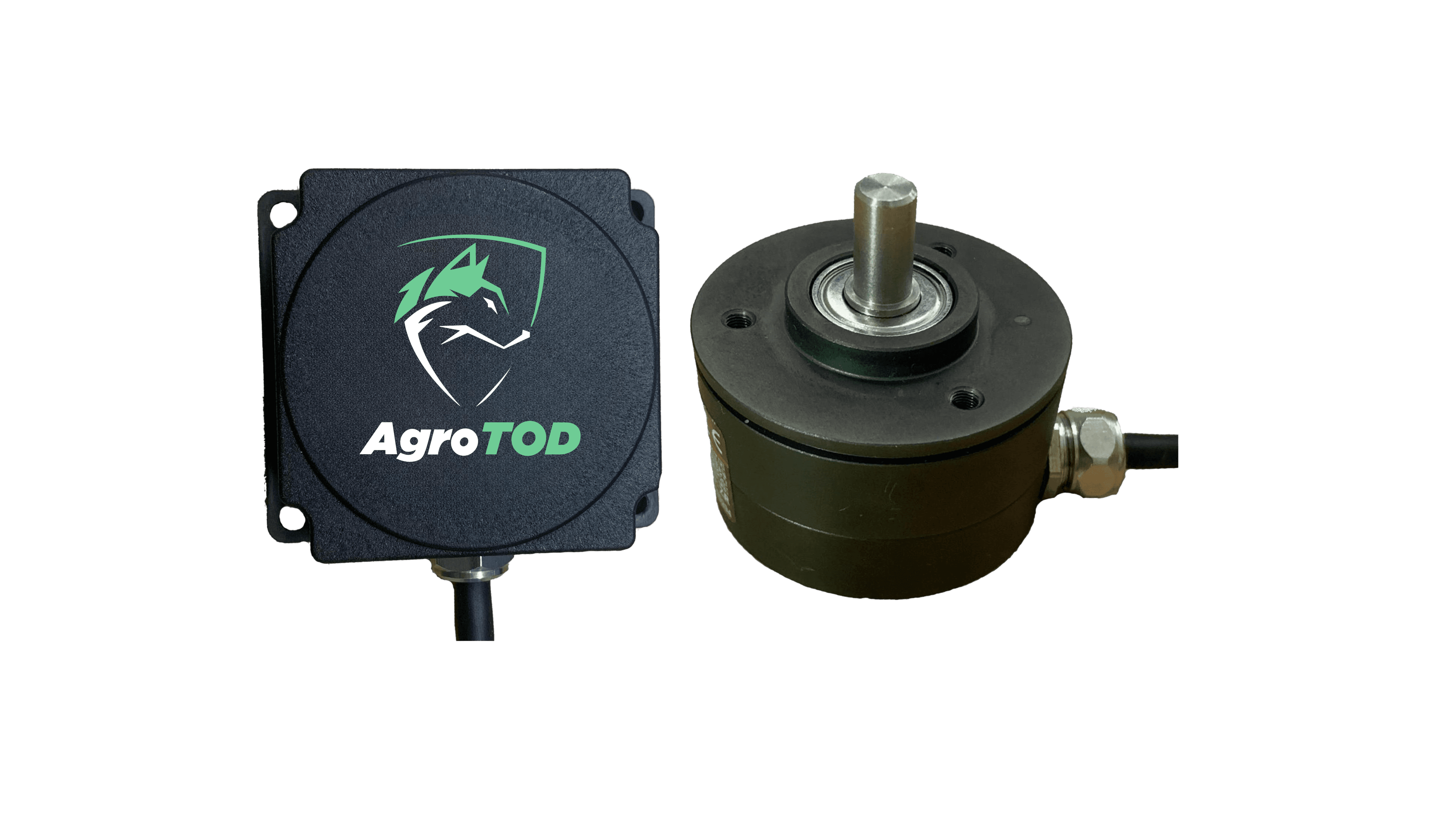

Is an angle sensor required?⌄
The angle sensor is optional. Recommended to improve performance in challenging conditions.
What about the display and durability?⌄
10.1-inch Android 10 display with IP65 protection; resistant to dust and water splashes.
Are software updates and remote support available?⌄
Yes. OTA remote updates and remote technical support are available.
Is a subscription required for L‑Band?⌄
L‑Band service covers all of Türkiye. Contact sales for package/subscription details.
Centimeter‑level accuracy without internet or base station
With L‑Band PPP, AgroTOD Ultra delivers ±2.5 cm accuracy in the field without connectivity.
